【Product overview】

The 9 Port 10G uplink 2.5G light network management Ethernet switch, adopts the network chip solution of high quality and high speed. The product is designed to be fan-free and quiet, which completely solves the problem of loud noise of small switches deployed in the office environment. The switch has 8* 100/1000/2500M RJ45 ports and 1* 10G SFP+ port, providing seamless connection to 100/1000/2500M Ethernet for easy management and maintenance. The switch can be widely used in security network video surveillance, hotels, campuses, and network engineering of small and medium-sized enterprises.

【Main Feature】

- 8* 100/1000/2500M RJ45 port +1*10G SFP+ ports;

- Support IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae,IEEE 802.3x；

- Ethernet port support 100/1000/2500Mself-adaptive;

-Supports automatic port rollover(Auto MDI/MDIX);

-Panel indicators monitor working status and assist in fault analysis;

-Support QoS data priority;

-Flow control mode, full duplex adopts IEEE802.3x standard, half duplex adopts Backpressure standard;

-Support Surge protection: Common mode 6KV;Differential mode 2KV;ESD: Air 8KV, Contact 6KV.

【Application environment】

- Metropolitan area optical fiber broadband network: Telecom, cable TV, network system integration, such as number, according to network operators.

- Broadband private network: applicable to financial, government, oil, electric power, public security, education and other industries private network.

- Multimedia transmission, image, voice and data integrated transmission, for remote teaching, meeting TV, video phone and other applications.

- Real-time monitoring: real-time control signal, image and data transmission.

Switch User Manual - Important Notes

Technical Parameters

I/O Interface | Power: DC 2.1 | Ethernet Ports: 8 * 100/1000/2500M RJ45 ports, 1 * 10G SFP+ port

Performance

Network Parameter

Network Protocols: IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab (Gigabit Ethernet), IEEE 802.3bz (5G Ethernet), IEEE 802.3z (Gigabit Ethernet), IEEE 802.3ae (10G Ethernet), IEEE802.3x (Flow control)

Industry Standard: EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge) | Network Medium: 10Base-T, 100Base-TX, 1000Base-TX, SFP Medium

Certification

Safety Certification: CE, FCC, RoHS

Environmental Standard

Working Environment: Operating temperature -10~50°C, Operating humidity 10%~90%

Storage Environment: Storage temperature -40~70°C, Storage humidity 5%~95%

Functional Indication

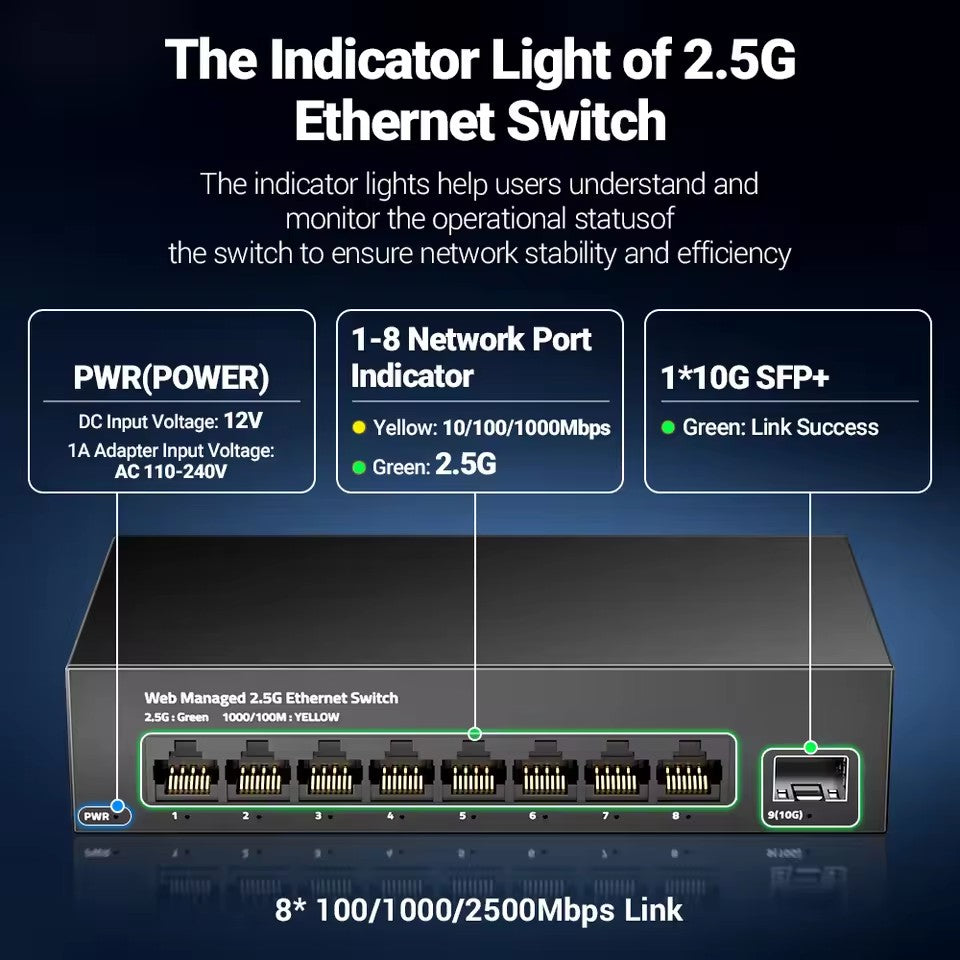

PWR (Power Indicator): On - Powered on, Off - Powered off | SYS: Flashing - System startup, Lighting - System Running

Port 1-8: Green On - 2.5G Link connect normal, Yellow On - 10/100/1000M Link connect normal, Off - Link off, Flashing - Data transmitting

Port 9: Green On - 10G Link connect normal, Off - Link off, Flashing - Data transmitting

Reset: Long press for 6 seconds to Factory reset

Physical Specification

Product Size: 190*100*28mm | Product Weight: 0.49KG | Package Size: 245*190*60mm | Packing Weight: 0.71KG

Operating Voltage

Adapter Input Voltage: AC 100-240 V | Switch Input Voltage: DC 12V1A

Power

Main Board Power: 11.29W

L2 Function

Port Switch, Port Speed, Port Duplex, Port Flow Control, Jumbo Frames (Up to 16356 bytes), EEE

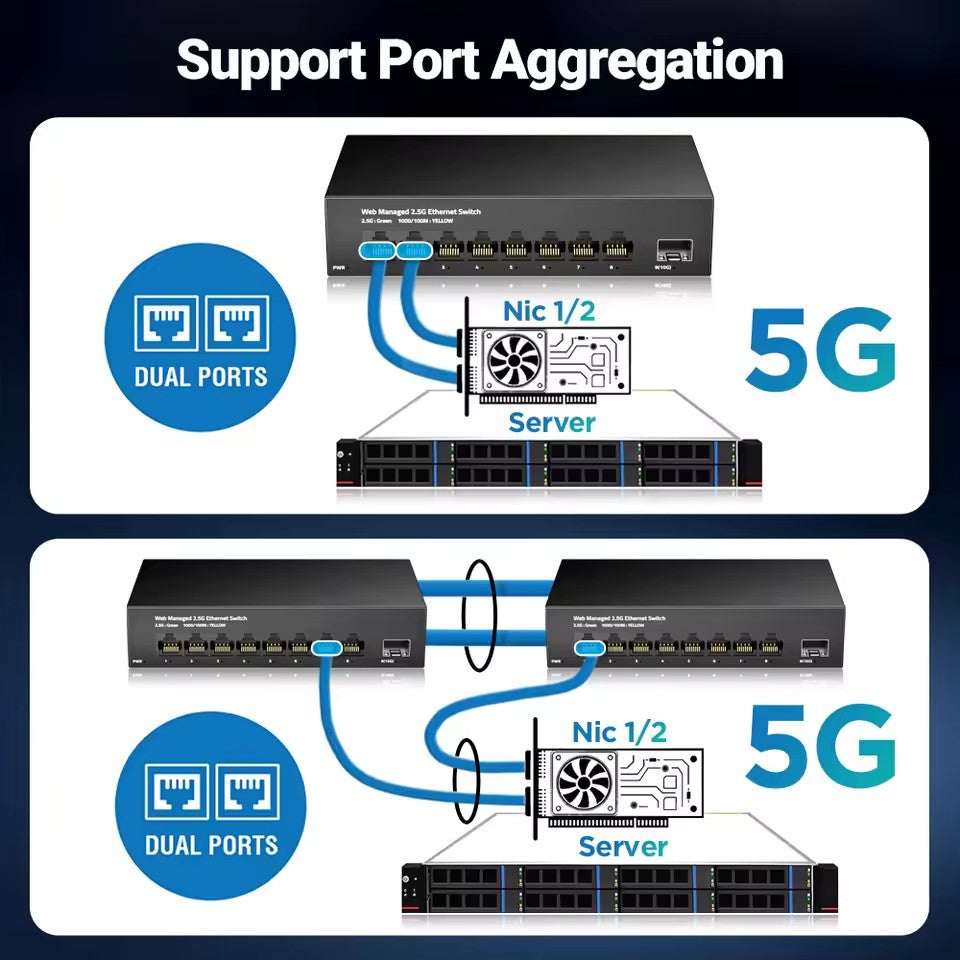

Link Aggregation: Static Group, Up to 2 groups, Max. 4 members per group

Storm Control: Broadcast, Unknown Multicast, Unknown Unicast

Port Mirroring, Port Security: MAC Address Constraints, Port Isolation, Port Rate-limit

Loopback Detection, VLAN: Access/Trunk/Hybrid, Configurable VID from 1 - 4094, Max. 31 static VLAN groups

MAC Address: Dynamic Address, Static Address

Spanning Tree Protocol: STP/RSTP, Edge Port

Multicast: IGMP Snooping, IGMP V1/V2, Router Port, Static IGMP Join

QoS: Traffic classification based, Strict priority and WRR, Port Priority, Supports up to 8 queues per port

Services

Access Protocol: HTTP | Diagnostics: Port Statistics

Management

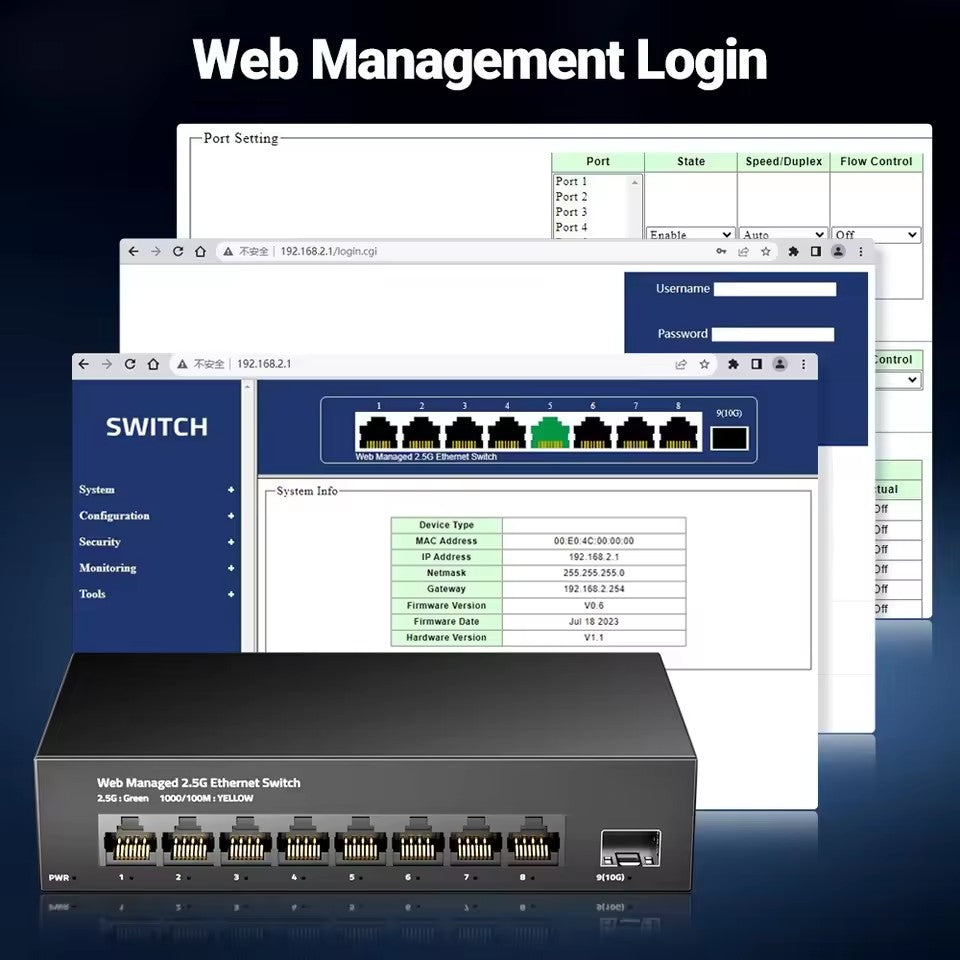

Manager Access: HTTP | Manager IP: Static Address, DHCP Client | User, Firmware: Firmware Upgrade | Configuration: Upload and Download, Save, Restart, Factory Defaults

Standards Compliance

IEEE 802.3x flow control and back pressure | IEEE 802.1D Spanning Tree Protocol | IEEE 802.1w Rapid Spanning Tree Protocol | IEEE 802.1Q VLAN tagging | RFC 768 UDP, RFC 791 IP, RFC 792 ICMP, RFC 2068 HTTP, RFC 1112 IGMP v1, RFC 2236 IGMP v2

Package

Switch * 1pcs | User Manual * 1pcs | Power adapter * 1pcs
